Product details
What’s in the Box

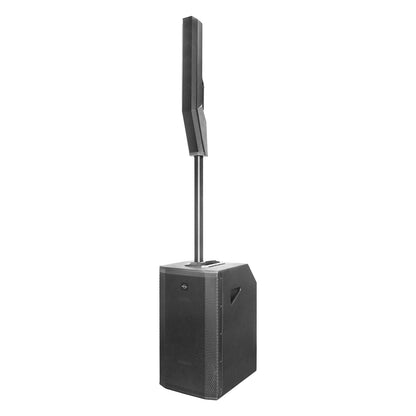

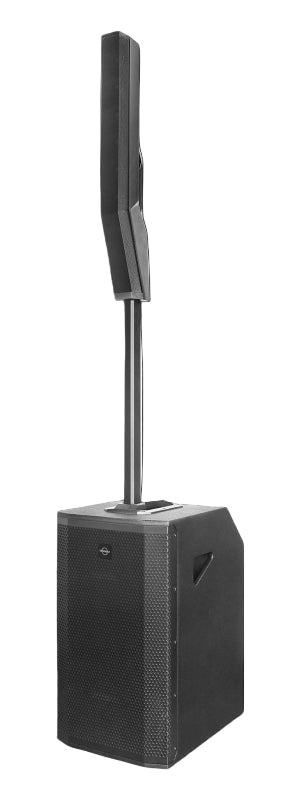

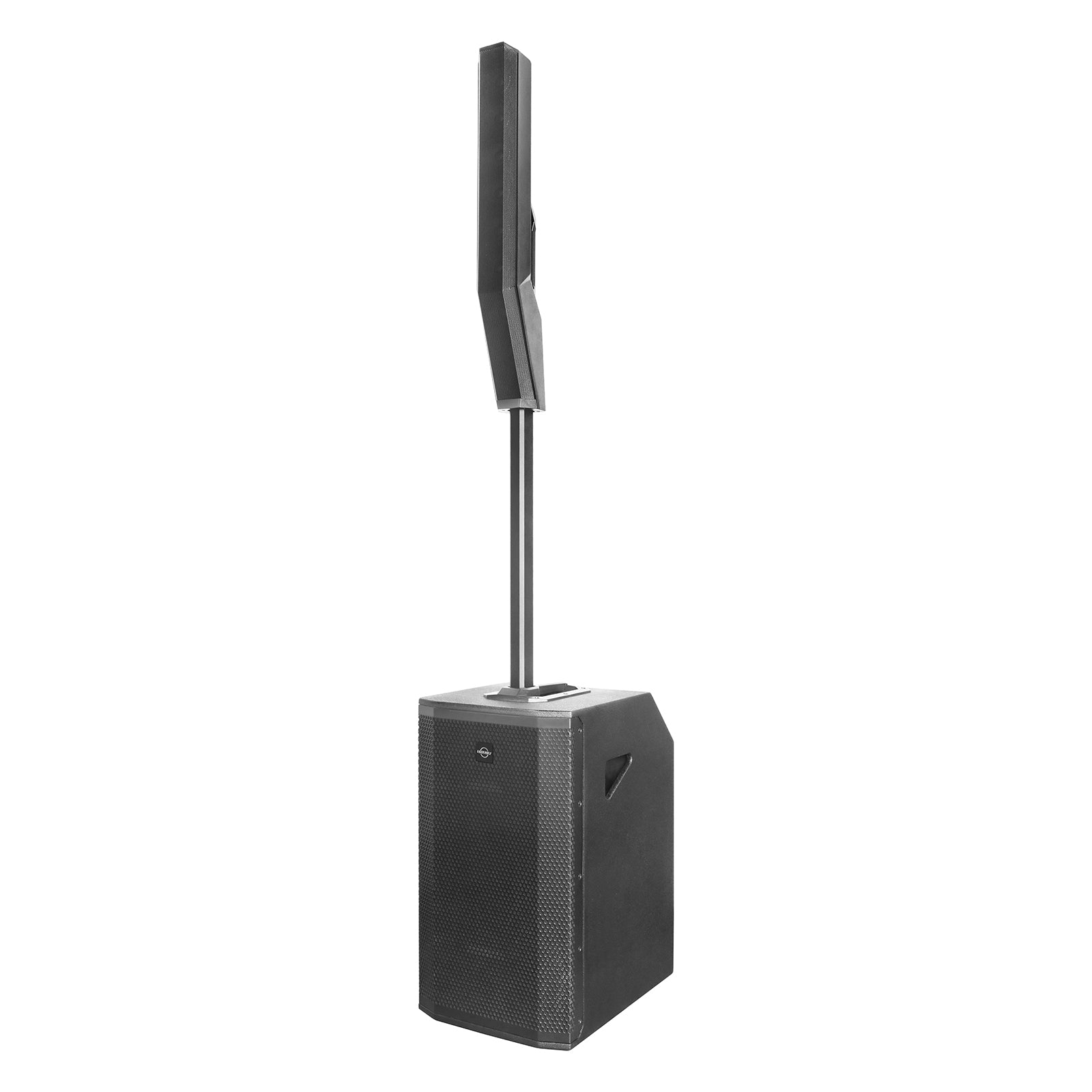

15-inch column speaker
power cord
user manual
Technical Specifications
| Column array | 8pcs * 3"neo driver |
|---|---|
| Woofer | 15"subwoofer |
| Coverage Pattern (Nominal) | 120° x 60° |
| Frequency Response Hz (-6 dB) | 45 Hz - 20 kHz |
| Maximum SPL (peak dB) | 125 dB |
| Power Output (RMS) | 800W + 400W |

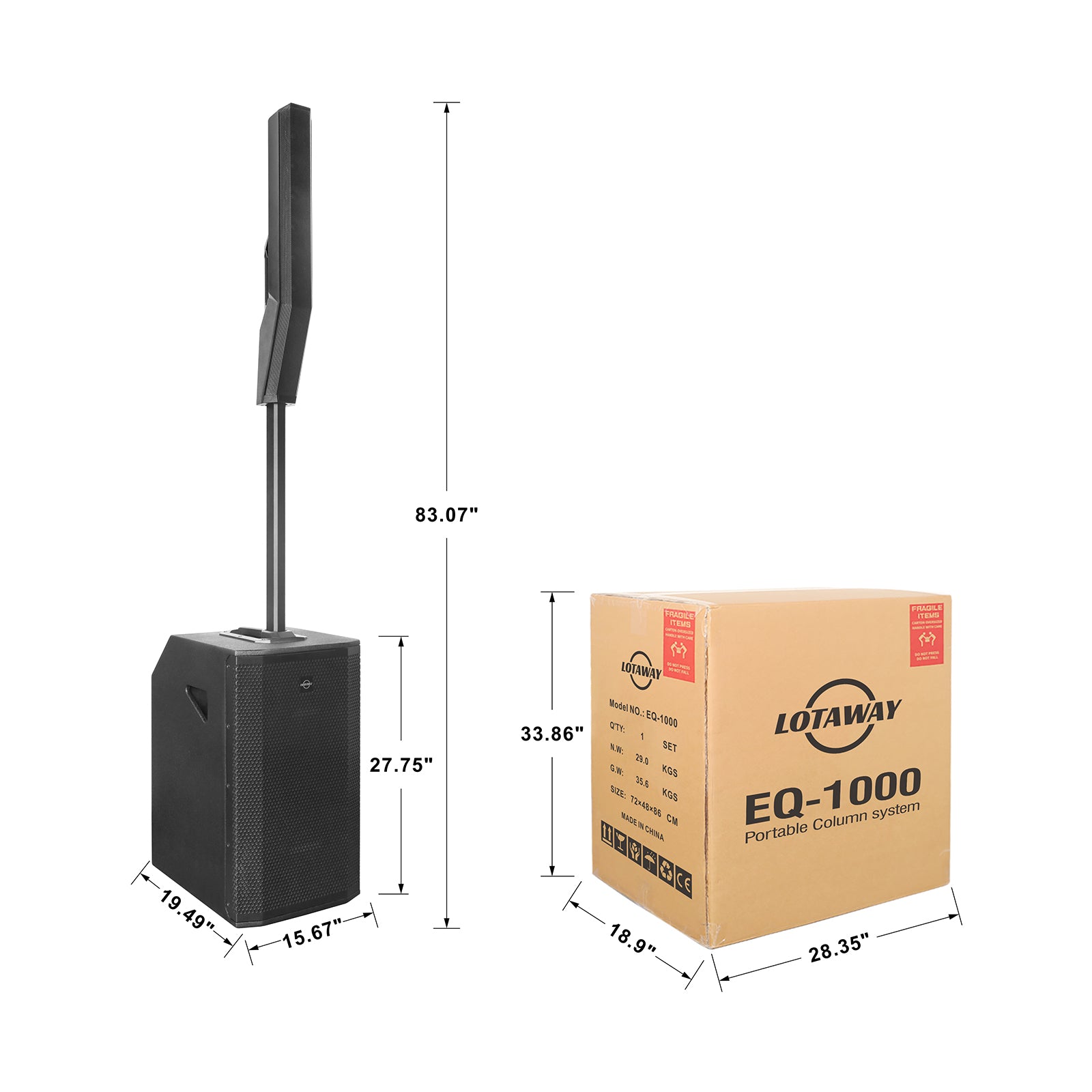

| Entire Product System | 83.07" H x 19.49" W x 15.67" D (78.5 lb) |
| Characteristics | Bluetooth audio streaming, DSP-based signal processing, excellent radiation characteristics, mono/stereo operation |
EQ-Series Parameter Comparison
| Model No. | EQ-800 | EQ-1000 |
| Type | 1pc column + 1pc 12'' subwoofer | 1pc column + 1pc 15'' subwoofer |
| Frequency Response (-6dB) | 45 Hz - 20 kHz | 45 Hz - 20 kHz |
| Max. SPL (1m, free space) | 123 dB | 125 dB |
| Power Output (RMS) | 450W +250W | 800W +400W |
| Impedance | 4 Ohms | 4 Ohms |
| Transducer HF | 8pcs * 3" driver | 8pcs * 3" neo driver |
| Transducer LF | 12" subwoofer(RD12S65) | 15" subwoofer |
| Amplifier | Class-D amplifier | Class-D amplifier |
| DSP Module | DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Flat, DJ, Live | DSP-100, 96 kHz, 24-bit DSP processor with preset modes: Flat, DJ, Live |
| Protection | Short circuit overheating, over-current | Short circuit overheating, over-current |
| Indicators | Power, signal | Power, signal |
| Audio Input / Output | 3* Combo XLR/Jack input, 1 * RCA input, 1 * Aux input, 1 * XLR output | 3* Combo XLR/Jack input, 1 * RCA input, 1 * Aux input, 1 * XLR output |
| Power Supply | 100~260V 60/50HZ | 100~260V 60/50HZ |
| Enclosure | Plastic (Sat)+15mm MDF (Sub) | Plastic (Sat)+15mm MDF (Sub) |
| Cabinet | MDF/Plywood with lacquer | Plywood with lacquer |
Warranty & Support
Please contact the seller directly for warranty information for this product. You may also be able to find warranty information on the manufacturer’s website.
Product Video
LOTAWAY EQ-1000: Power-Packed Portable PA System Arrives!
The EQ Series’ new release — EQ-1000 is here! Equipped with one 15-inch subwoofer and eight 3-inch neodymium drivers, this portable PA system, via its built-in Class D Amplifier, delivers 950 watts RMS and 125dB Max.SPL with ease.It means rich, precise bass paired with crisp highs/mids, bringing every note and vocal to life. Perfect for DJ sets, karaoke, or small gigs — portable, powerful, and ready to elevate any moment.

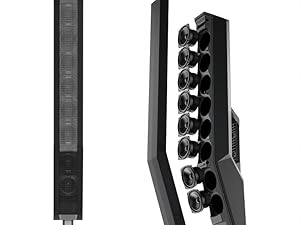

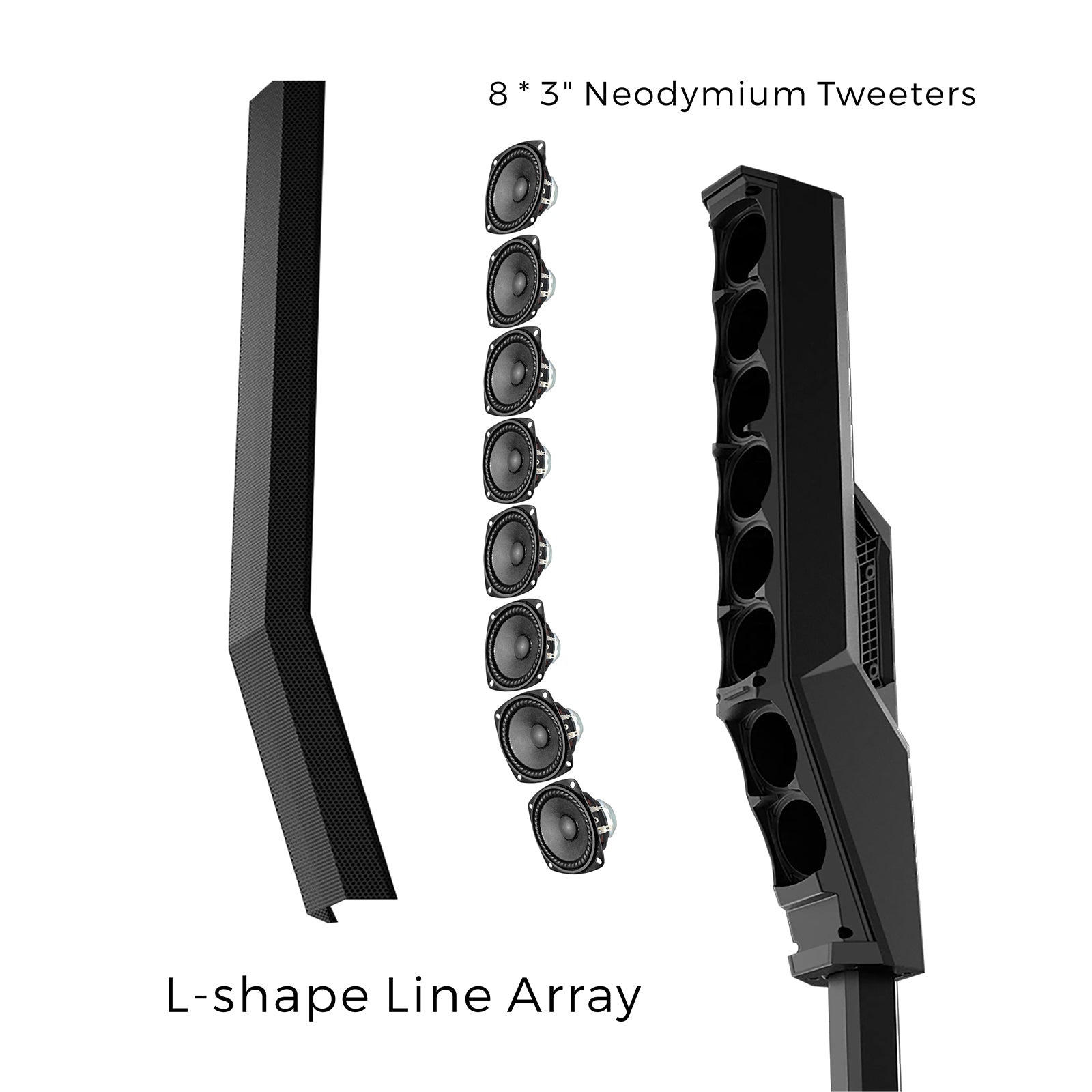

8×3” Tweeter L-shaped array: Crisp Sound, Universal Coverage
With EQ - 1000, coverage is never a compromise. 60° vertical and 120° horizontal coverage ensure every
listener, whether front - row or off - to - the - side in medium - large venues, gets clear sound. Its portable design pairs with smart coverage engineering — set it on the floor, mount on a stage,and focus on performing. DJs, singer - songwriters, small groups: sound your best with ease.
15” woofer in acoustically optimized cabinet
Feel earth-shaking bass that dives deep to 45Hz—every beat is thick, smooth, and full of punch! 650W RMS power drives the 15” subwoofer, while 4Ω impedance boosts max impact. Crushes stages, parties, homes with immersive low end that leaves you stunned!

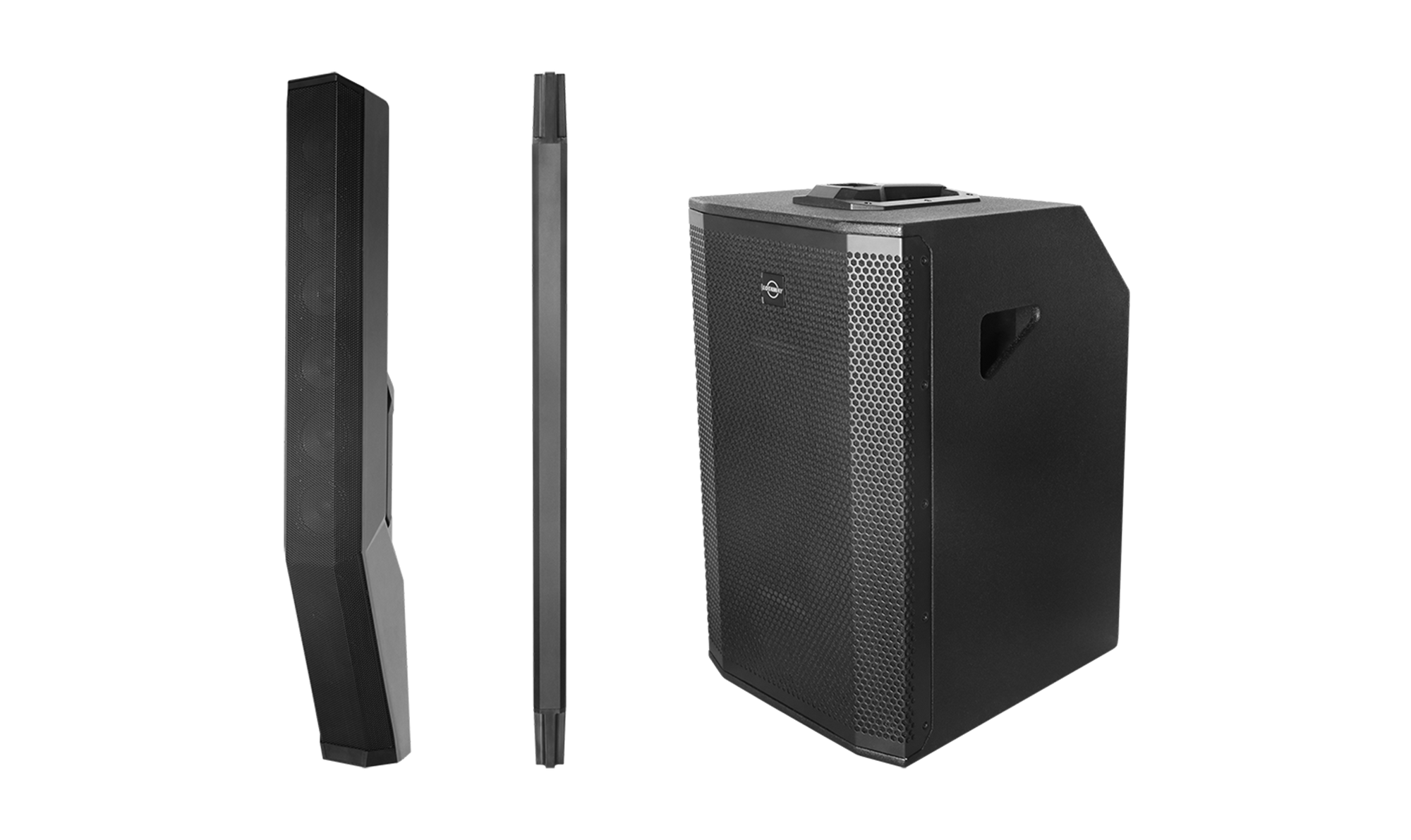

Three-Part Lightweight Design
One carton holds EVERYTHING—tweeter, column, subwoofer, power cord! Pearl - cotton - protected, drop - tested tough. Small size (18.9"L×28.35"W×33.86"H) = no lost parts, easy to carry to gigs.250 sets per container? Perfect for quick, hassle - free shows，and fast deliveries.
ALL FOR THAT MOMENT
Powerful sound for every scene. Effortless portability for any journey. With EQ-1000, go from storage to stage in one move, from setup to soundtrack in moments. It brings seamless setup and crystal - clear audio to conferences, parties, gigs and backyard gatherings — the magic to make every moment resonate.
Features
-
Vertical Sound Immersion
This portable column system uses a vertical line array with 8×3" drivers. Its rational layout delivers uniform, penetrating sound to fill every scene corner.
-

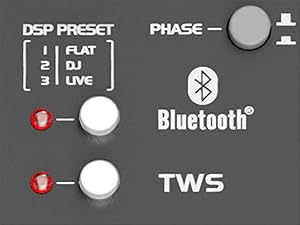

Three DSP Modes, Easy to Switch
This portable column speaker has three DSP presets – FLAT, DJ, LIVE – for diverse scenarios, plus Bluetooth and TWS to streamline sound setup effortlessly.
-

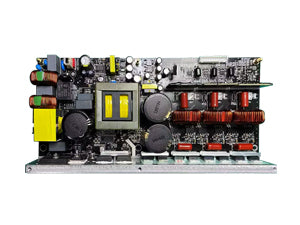

PFC Technology Amplifier
Our high-power PA system’s power tech meets global voltage needs and boosts stability for consistent long-hour performance
-

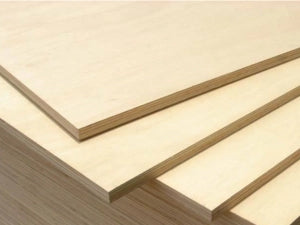

Sturdy Wooden Box
The EQ-1000’s wooden subwoofer cabinet uses quality wood for great airtightness. It locks in low frequencies for clear, powerful bass while cutting down on unwanted cabinet resonance.
- Sleek column, mighty sound
Tall design, tight bass response. An all-in-one system that saves space without skimping on power.
- Adapt to any scene, anywhere
From indoor seminars to outdoor parties, optimized portability and balanced weight keep setup smooth.

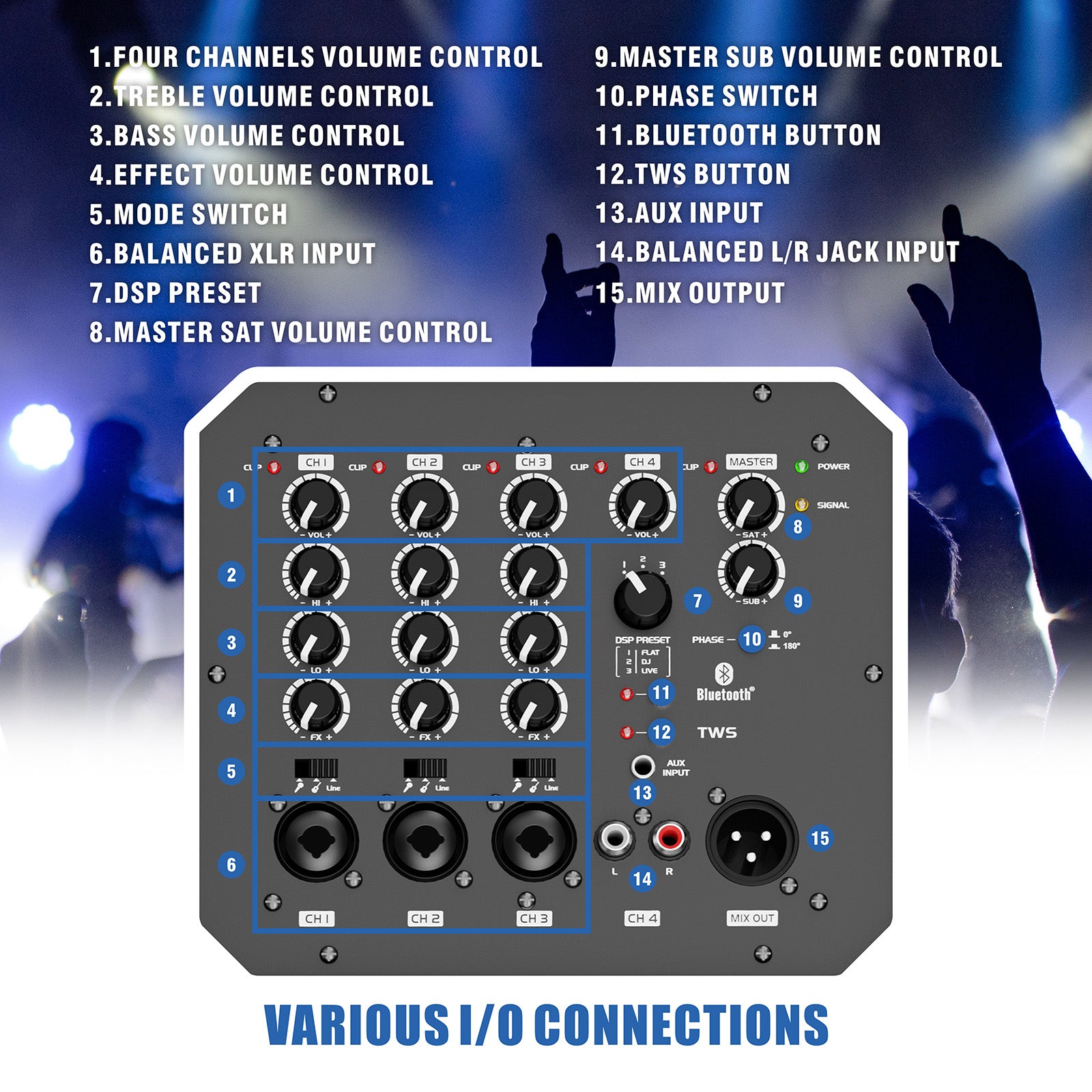

- Mix the way you want
Tweak audio on the system’s panel—choose what fits the moment.
- Grab control in a flash
Wireless control simplifies adjustments: tweak levels, switch tracks, and shape your sound on the fly.
- Precision Sound Shaping
Built - in 96kHz/24 - bit DSP fine - tunes frequencies—get studio - grade clarity, whether it’s vocals cutting through or bass thumping.
FAQ
What is the EQ Series?
The EQ series combines state-of-the-art industrial design, with Lotaway's new digital audio andcontrol technology, DSP and effects - to deliver best-in-class sound quality, powerful and reliability.With two versatile models to pick from — the EQ-1000, and EQ-800，we’ve got solutions for every performance scale and space.
The EQ series is the perfect choice for bands/musicians, AV rental companies, DJs and any application where true professional audio performance is required in a super-compact and portable package.
What is the coverage of the EQ-1000?
The EQ-1000 offers versatile coverage. It has a L-shaped line array featuring 8 articulated 3" neodymium drivers delivering 120-degree horizontal coverage: tight vertical control on top, wide dispersion on the bottom to cover audiences whether set up on the floor or an elevated stage, even off to the extreme sides in medium to large venues.
What's the optimal placement for an EQ-1000?
EQ-1000 are designed for placement behind the artist to function as both their monitor and front-of-house PA. At louder volumes, an EQ-1000 can be placed in front or to the side, depending on ability to control unwanted feedback.
Can EQ-1000 system be used outdoors?
Yes. The system can be used indoors or outside. In fact, the EQ-1000's 120-degree horizontal coverage pattern and 60° vertical coverage with low drop-off over distance makes it an ideal system for outdoor events. However, EQ-1000 Systems should not be exposed to direct sunlight for extended periods of time or to precipitation as these systems are not IPX-rated.
Are the EQ-1000 Systems waterproof?
No. EQ-1000 Systems are not water resistant or waterproof. They can be used outside but should not be exposed to direct sunlight for extended periods of time or to precipitation as these systems are not IPX-rated.
Can the EQ-1000 System be used together with other portable PA systems from Lotaway?
Yes. All Systems can share the same stage. However, your EQ-1000 System is designed to act both as your monitor and front-of-house PA, eliminating the need for any other system.
Do the EQ-1000 Systems have Bluetooth connectivity built in?
Yes. All EQ Series Systems feature Bluetooth connectivity , which provides your audience with a better listening experience.
